- Adjustable relief valve for over‑pressure protection
- Dual drive shafts for flexible rotation
- Buna or Viton seal options for fluid compatibility
- SAE A hydraulic motor adaptors
- Drop‑in mounting with interchangeable spare parts
- Quiet, low‑maintenance sliding vane design

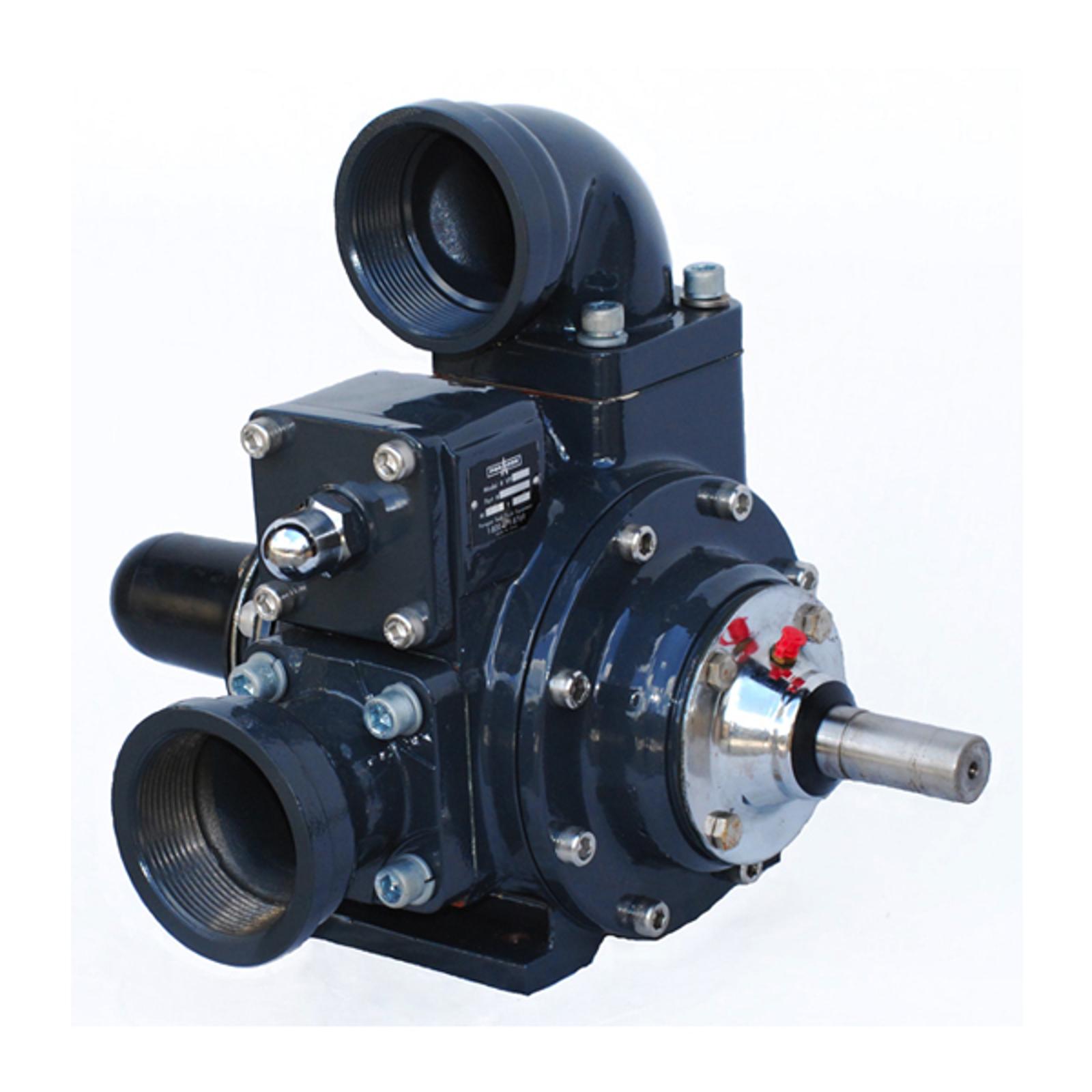

Discover the VP150 vane pump, a high‑flow, industrial‑grade solution engineered for reliable performance across demanding liquid‑bulk applications. Designed for efficiency, durability, and serviceability, the VP150 delivers consistent flow, flexible installation, and long service life making it a trusted choice for operators seeking engineered vane pump solutions and custom vane pump configurations.
- Port Size: 2‑1/2" NPT flanged
- Max Flow Rate: 150 gpm
- Operating Pressure: 110 psi (standard), 125 psi with relief spring
- Relief Valve: Supplied with additional 125 psi spring for high‑pressure duty
- Drive Shafts: Dual (clockwise & counter‑clockwise rotation)
- Seal Options: Buna or Viton
- Motor Mounting: SAE A hydraulic motor adaptors available
- Weight: 94 lbs
- High Efficiency: Moves more product per rotation than many comparable vane pump designs.
- Durable Construction: Lightweight body and rotor engineered for long service life.
- Versatile Applications: Suitable for lube oil, fuel oil, solvents, petrochemicals, and more.
- Low Maintenance: Sliding vane action reduces wear and supports quiet operation.
- Built‑In Safety: Adjustable relief valve protects against over‑pressure events
Pump Model | VP150 | ||
|---|---|---|---|
Pump Speed (rpm) | 520 | 640 | Max 780 |
Flow Rate (gpm) | 98 | 120 | 157 |
Horsepower (hp) | 3.8 | 5.0 | ~6.2 (est.) |
What benefits does the VP150 vane pump offer?
The VP150 delivers high efficiency and dependable performance for industrial fluid transfer. With flow rates up to 150 gpm and pressure capability up to 125 psi, it provides strong throughput with reduced horsepower requirements. Its sliding vane design supports quiet operation, low maintenance, and long service life. Dual‑shaft rotation allows flexible installation, while interchangeable spare parts simplify servicing.
How does the relief valve safeguard operations?
Each VP150 includes an adjustable relief valve set at 110 psi, plus an additional 125 psi spring for higher‑pressure duty. This built‑in protection helps prevent equipment damage, reduces downtime, and allows operators to adapt the pump to changing system demands.
What seal options are available?
Choose between Buna for standard petroleum products or Viton for enhanced chemical resistance. These options allow operators to match the pump to their specific fluid requirements for reliable, leak‑free performance.
Where is the VP150 typically used?
Common applications include:
- Fuel oil transfer
- Lube oil circulation
- Petrochemical processing
- Solvent handling
- Tank truck loading/unloading
- General industrial fluid transfer
Its lightweight rotor and body make it suitable for both mobile and stationary systems.
How does the VP150 compare to other vane pumps?
The VP150 combines high flow capacity with energy‑efficient operation, requiring less horsepower than many comparable vp pumps. Its sliding vane design self‑adjusts for wear, helping maintain flow rates over time and reducing performance loss.
