- Ideal for tractors with short wheelbases or behind the cab mounting
- The design offers maximum hydraulic fan system airflow and efficiency
- Narrow profile unit at 8-1/4" wide the SL can be mounted in tight installations
- Hidden Breather prevents water ingress when pressure washing
- Corrosion resistant 304 stainless steel construction
- Top mounted filter for fast filter changes
- Multiple suction connection options
- Rear stud mount offers a flat mounting surface without mounting flanges
- Two conveniently located sight glasses, one empty and one full, show the correct oil level

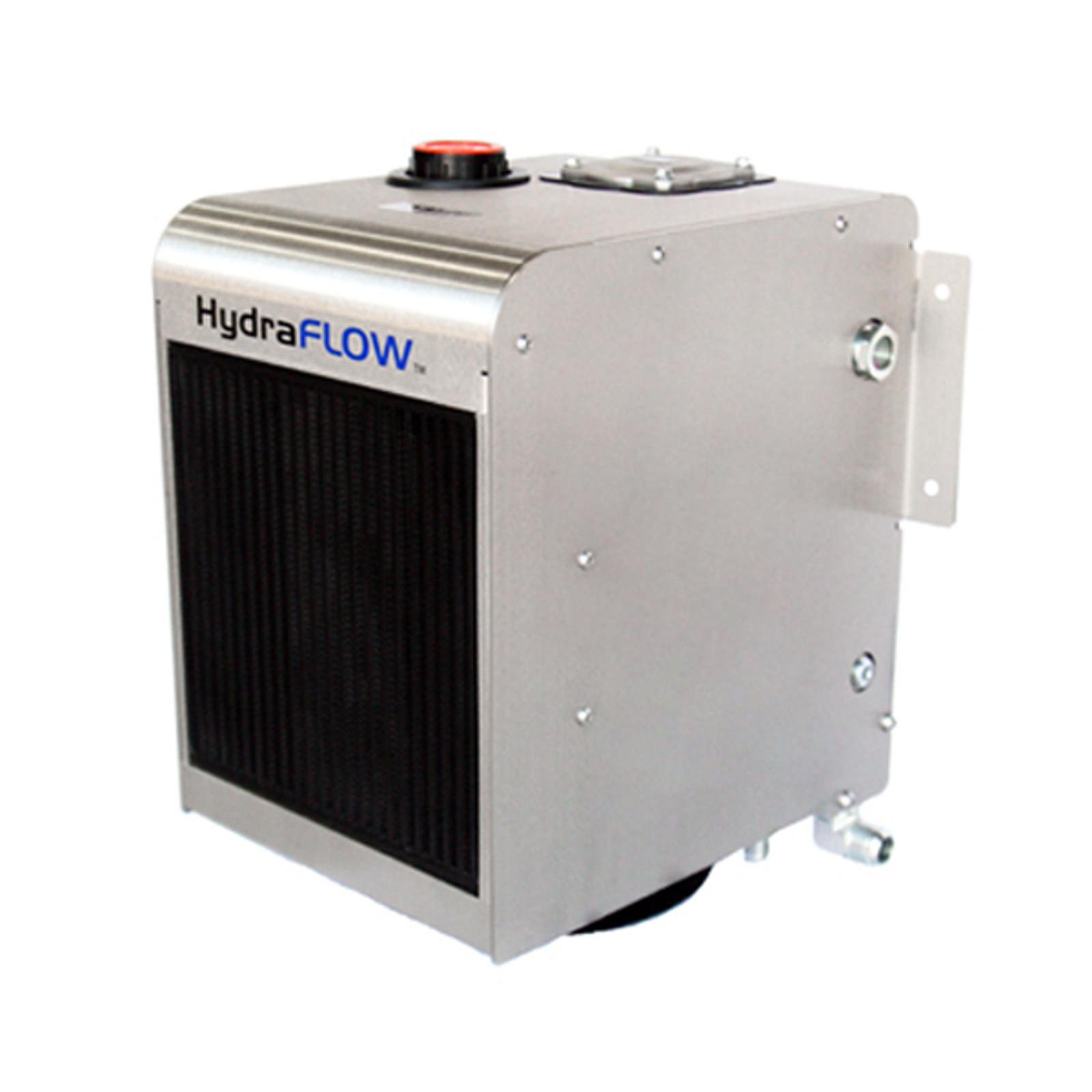

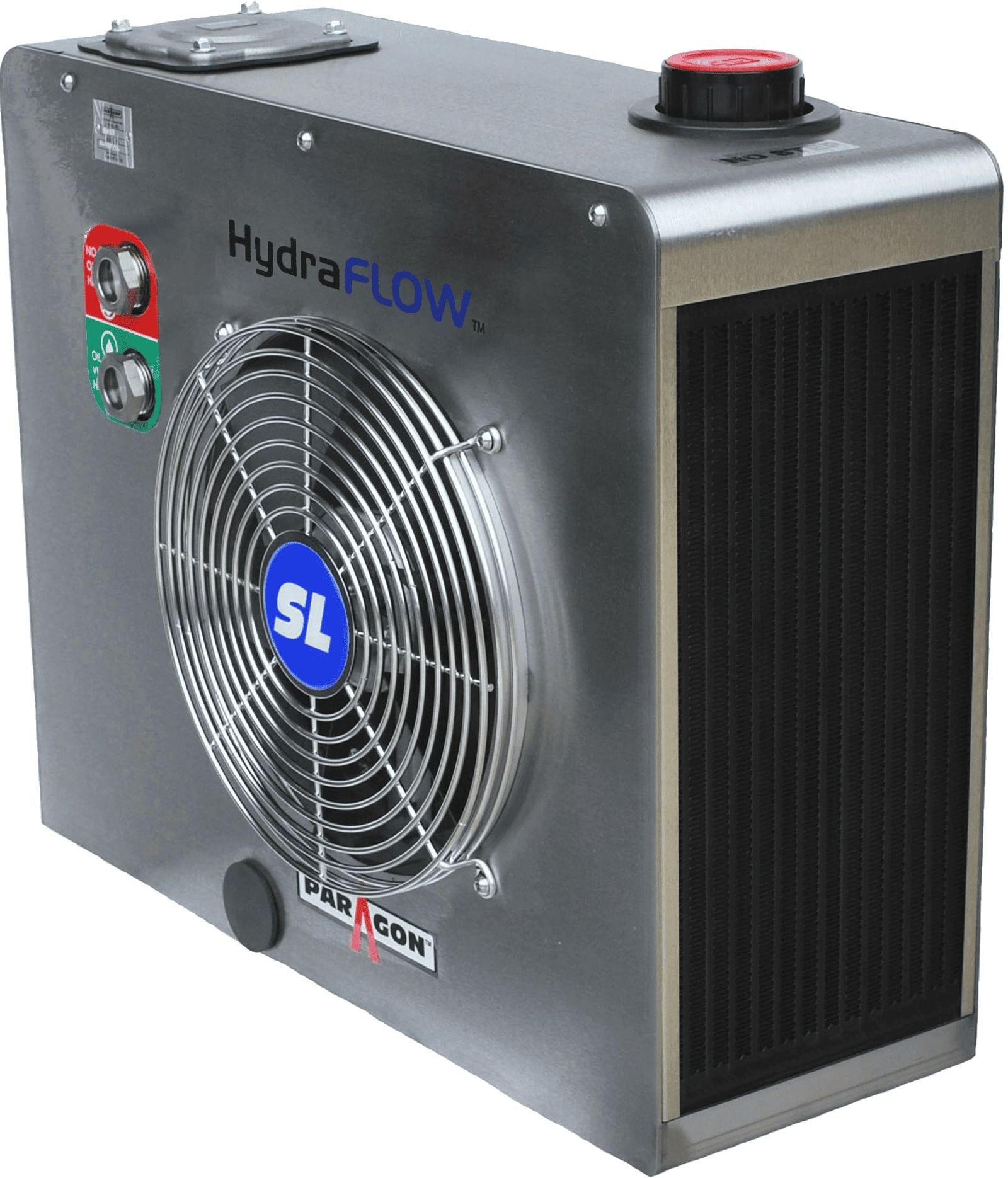

The HydraFLOW SL Hydraulic Cooler is designed with a narrow profile to fit in very tight spaces.
A conveniently located oil fill point at the front of the unit simplifies oil filling and permits unit to be mounted underneath the cab saving valuable frame rail space.
HydraFLOW is designed and assembled as a complete, easy to install package.
- Reservoir - 2-1/2 gallon
- Flow rate - up to 25 gallons per minute
- Pressure - 3000 psi
- High pressure - 3/4" JICM "IN" 3/4" JICM "OUT"
- Low pressure return - 1" JICM
- Suction - 1-1/2" Code 61, 2” NPT
- Drain connection - 1/2"
- Weight - 85 lbs. Dry

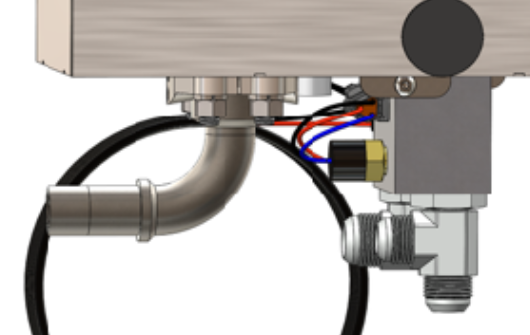

- Integrated Over Temperature Bypass Circuit is available with SLe model
SLe model option includes:
- An integrated over temperature bypass circuit
- Extra protection for the cooler and hydraulic system components such as the hydraulic pump and motor
- Limits the maximum heat of the hydraulic oil and will automatically go into bypass, protecting the complete hydraulic system.
- Chemical transports
- LP Bobtails
- Maintenance trucks
- Water trucks
- Lube trucks
- Food transports
