The HydraCHEM system is an all-in-one liquid bulk transfer solution designed to simplify truck setups and improve performance.



It integrates:

  • Air compressor (up to 36 PSI)
  • Hydraulic circuit with reservoir and cooling system
  • Customizable product pump (up to 157 GPM at 125 PSI)



All components are housed in a single, compact unit, reducing complexity and improving reliability in chemical and liquid bulk transport applications.

HydraCHEM Trifold Brochure

Country

Industry

Your request will be forwarded to the relevant individuals to assist with your request.
By clicking 'Send' you are authorizing Paragon to contact you so that we may fulfill your request, as well as to communicate with you regarding our products and services.
Terms and Conditions
Privacy Policy

This site is protected by reCAPTCHA.

Why It Matters

Traditional liquid bulk transfer systems often require multiple mounting locations, large hydraulic reservoirs, extensive hose routing, and separate cooling components. As truck frame rail space becomes more limited, fleets and upfitters are looking for more compact and simplified system layouts.



By reducing hydraulic oil volume and minimizing the number of installed components, HydraCHEM helps fleets reduce weight, simplify maintenance access, and improve overall system organization.



Designed for chemical, industrial, and food-grade liquid transfer applications, HydraCHEM supports fleets looking for simplified liquid bulk transfer solutions without sacrificing performance.



Traditional chemical offloading systems require:

  • Multiple components
  • Large hydraulic oil reservoirs
  • Complex installation
  • Higher weight and maintenance



HydraCHEM replaces these with: One complete system

Resulting in:

  • Reduced weight
  • Simplified installation
  • Improved operator safety
  • Lower maintenance requirements

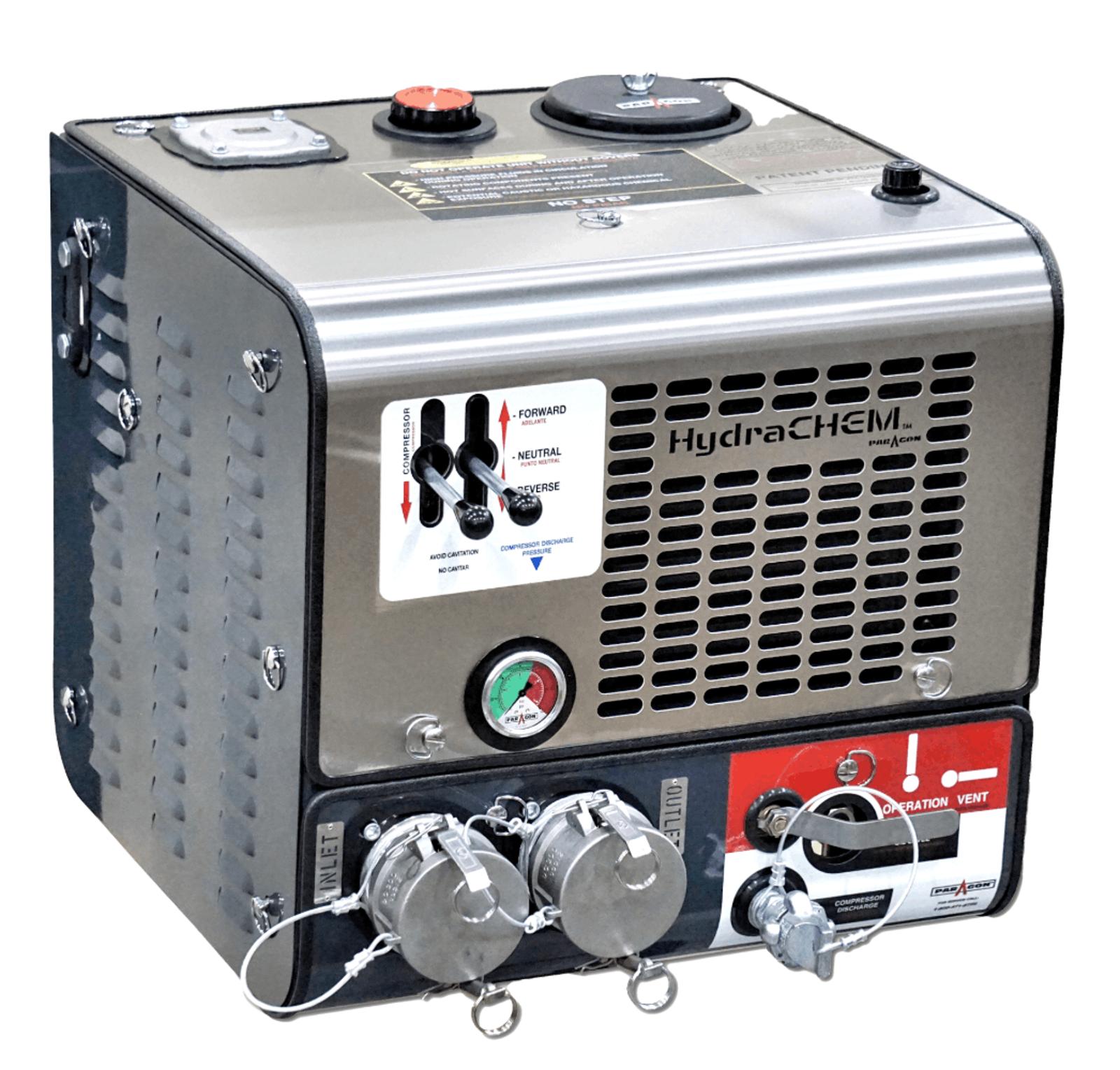

Double Spool HydraCHEM

What You’ll Find Inside: Key Technologies

All-in-One System Design

HydraCHEM combines:

  • Air compressor
  • Product pump
  • Hydraulic system
  • Cooling system

Into one enclosed unit, eliminating the need for multiple installations.



Reduced Weight Package

  • Saves over 100 lbs compared to traditional systems
  • Uses only 2.5 gallons of hydraulic oil
  • Eliminates up to 35 gallons of oil
  • Reduces over 270 lbs of system weight



Impact:

  • More payload capacity
  • Reduced oil spill exposure



Simplified Installation

  • Requires only 24” of frame rail space
  • Reduces installation time by ~4 hours
  • Only one unit mounted to the frame
  • Requires only two hydraulic hose connections



Operator-Focused Design

  • All controls located in one central location
  • Clearly labeled system for ease of use
  • Enclosed system protects from:
    • Rotating equipment
    • High-pressure oil
    • Product exposure



Easy Maintenance Access

  • Top-access service for air and oil filters
  • No disassembly required
  • Designed for fast service and reduced downtime



Built-In Protection & Durability

  • Stainless steel front cover
  • Powder-coated side panels
  • Designed to withstand:
    • Harsh environments
    • Cleaning chemicals
    • Road debris



Custom System Optimization

Paragon supports:

  • Product pump selection
  • PTO and hydraulic system configuration
  • System design for fuel efficiency and performance

HydraCHEM System Capabilities

Feature

Specification

Air Compressor

Up to 36 PSI

Product Pump Output

Up to 157 GPM at 125 PSI

Hydraulic Oil Capacity

2.5 gallons

Frame Rail Space Required

24 inches

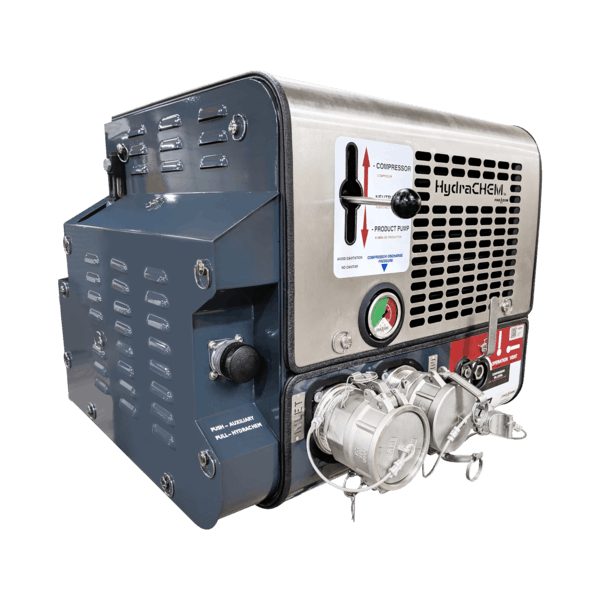

HydraCHEM Auxiliary System

The HydraCHEM Auxiliary expands system functionality:

Key Capabilities:

  • Up to 30 GPM hydraulic flow
  • Maximum 3000 PSI
  • Supports additional hydraulic equipment



Features:

  • Push/pull operator control
  • Rear bulkhead fittings for easy connection
  • Eliminates need for additional:
    • PTO
    • Hydraulic pump
    • Cooler



Design Advantage:

  • Only 4.14” additional width (total: 28.14”)
  • Open-back design for frame rail clearance
Hydrachem

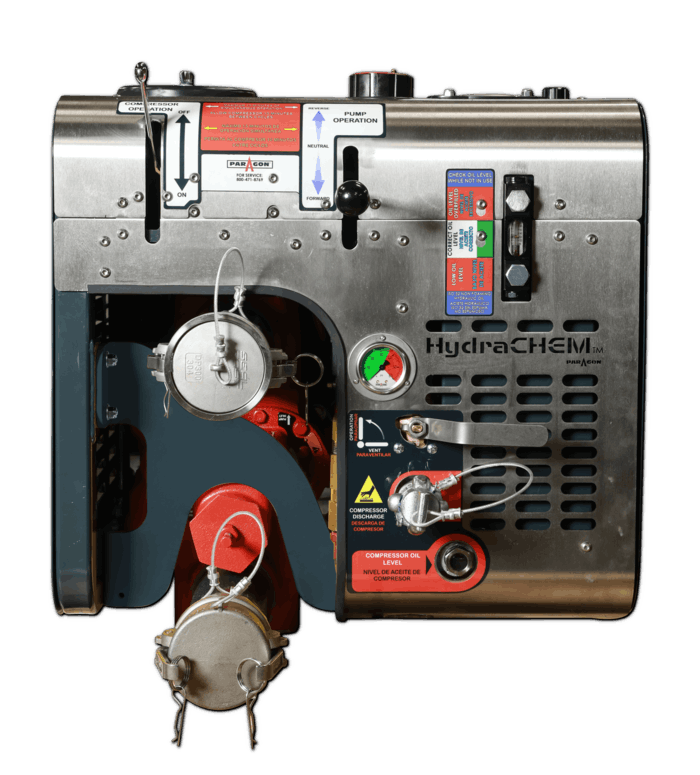

HydraCHEM 180 (High Performance Model)

The HydraCHEM 180 is designed for higher viscosity liquid applications.



Enhanced Pumping Performance

  • Uses G150 Gear Pump
  • Mounted vertically for improved product drainage
  • Top inlet improves flow conditions



Dual Operation Capability

  • Can operate:
    • G150 pump
    • P40 air compressor (optional)

Simultaneously



Built for Tough Applications

  • Designed for higher viscosity materials
  • Most robust system in the HydraCHEM lineup



Installation & Service

  • Same mounting locations as standard HydraCHEM
  • Rear-access hydraulic connections
  • No electrical connections required



Operator Protection

  • Fully enclosed system
  • Stainless steel covers
  • Powder-coated panels for durability



Custom Connections

  • 2” or 3” camlocks
  • Male or female options
  • Aluminum or stainless steel
HC 180 Product Image

Country

Industry

Your request will be forwarded to the relevant individuals to assist with your request.
By clicking 'Send' you are authorizing Paragon to contact you so that we may fulfill your request, as well as to communicate with you regarding our products and services.
Terms and Conditions
Privacy Policy

This site is protected by reCAPTCHA.

FAQs

Integrated systems help reduce installation complexity by combining multiple components into one package. HydraCHEM reduces installation time by minimizing mounting locations, hydraulic hose routing, and component layout complexity.
