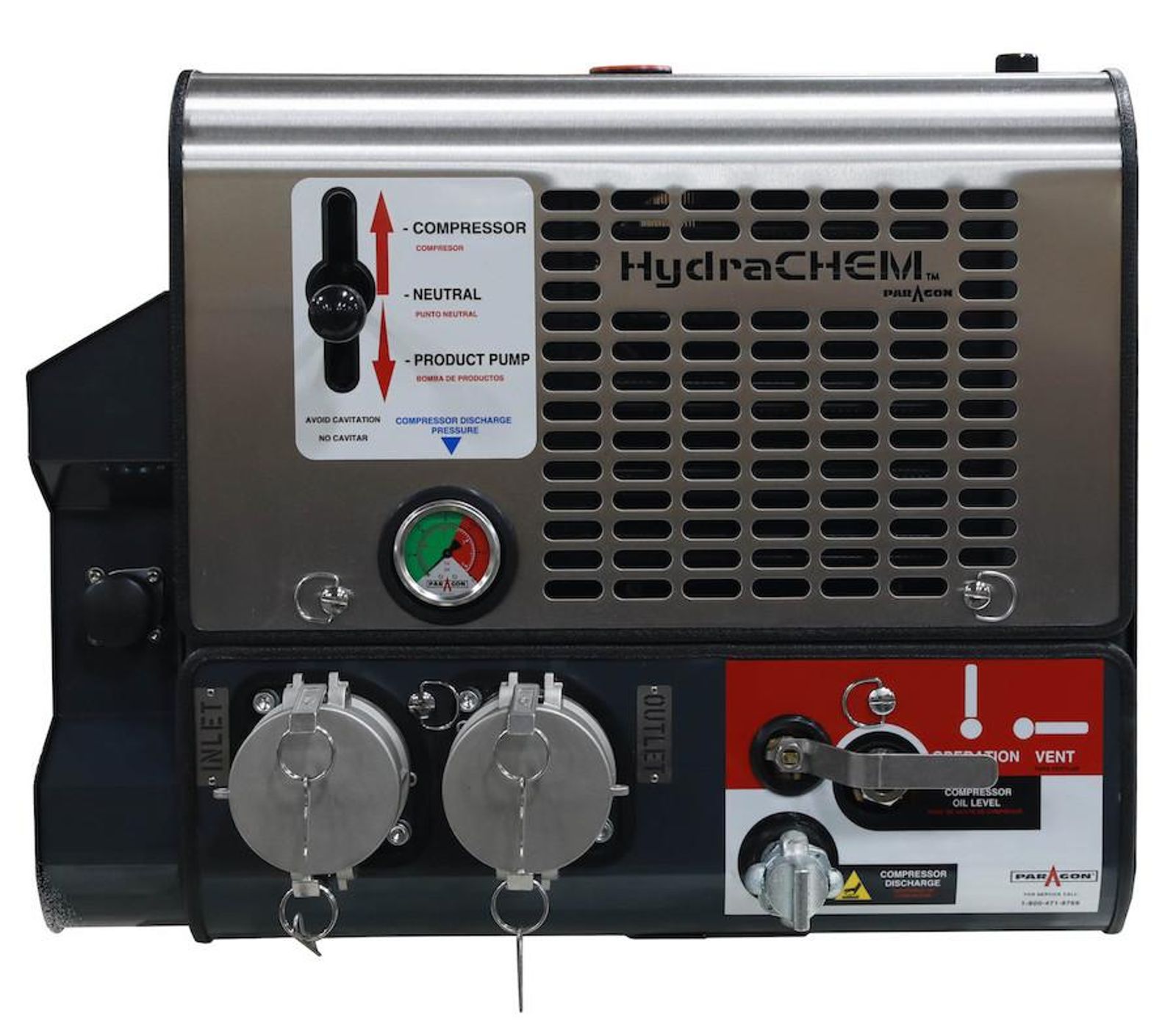

HydraCHEM

NEW Auxiliary and L160 Stainless Steel Lobe Pump options available!!!

  • Self Contained unit includes:
    • Hydraulic Cooler
    • Hydraulic Return Filtration
    • Chemical Product Pump
    • Air Compressor
    • Hydraulic Reservoir
  • The compact design shaves 100lbs+ off of a typical hydraulic system weight.
  • Easy installation cuts down on installation time by roughly 4 hrs.
  • Installation Requirements:
    • Minimum of 25" of frame rail space.
    • Only four Mounting holes required.
    • Two Hydraulic Hoses.
  • Simple operation design places everything within the operator's reach.
  • Performance Information:
    • Product Pump Delivery: Up to 198 GPM @ 145 PSI
    • Compressor Delivery: Up to 35 CFM @ 25 PSI

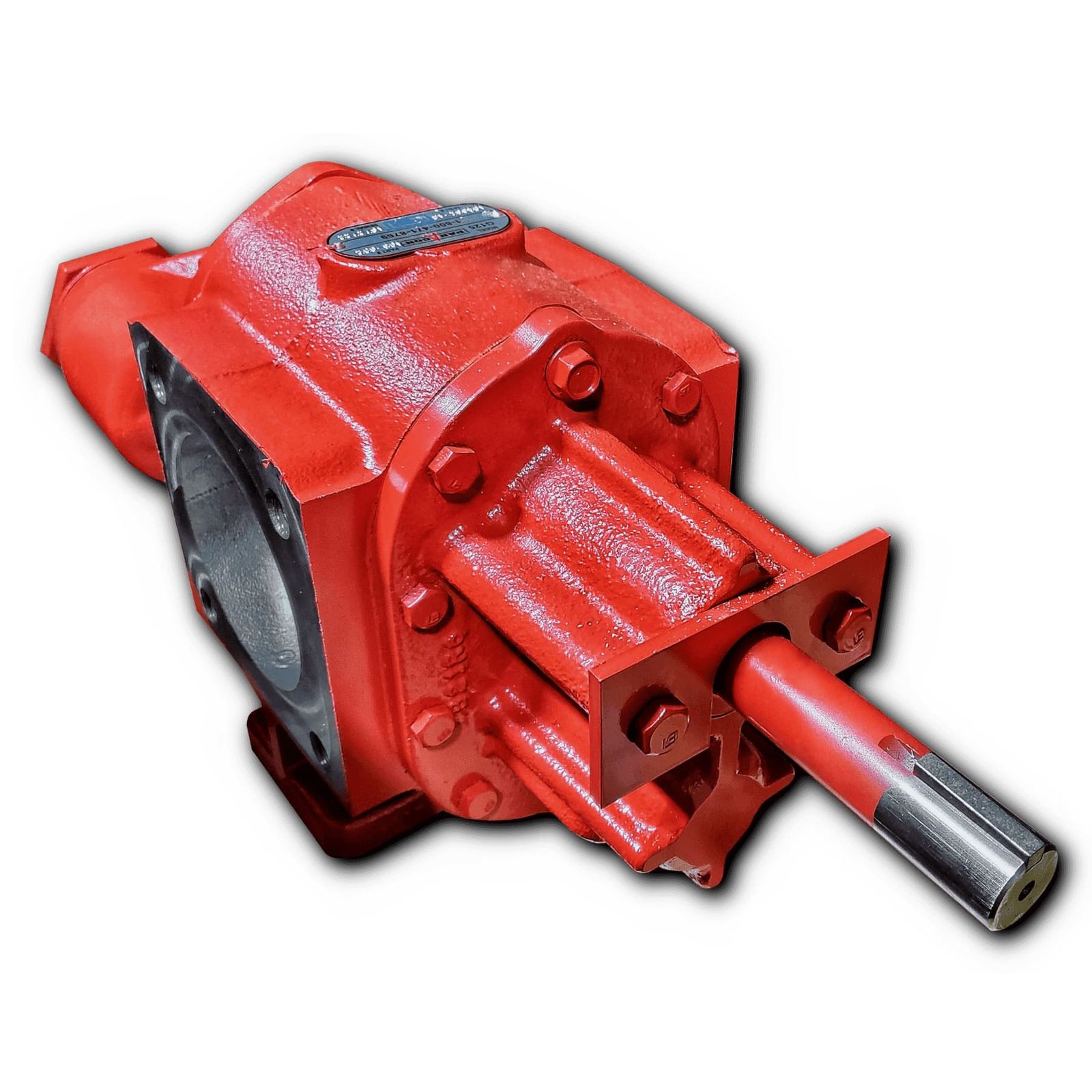

  • Gear Pump, Vane Pump or Lobe Pump options available.

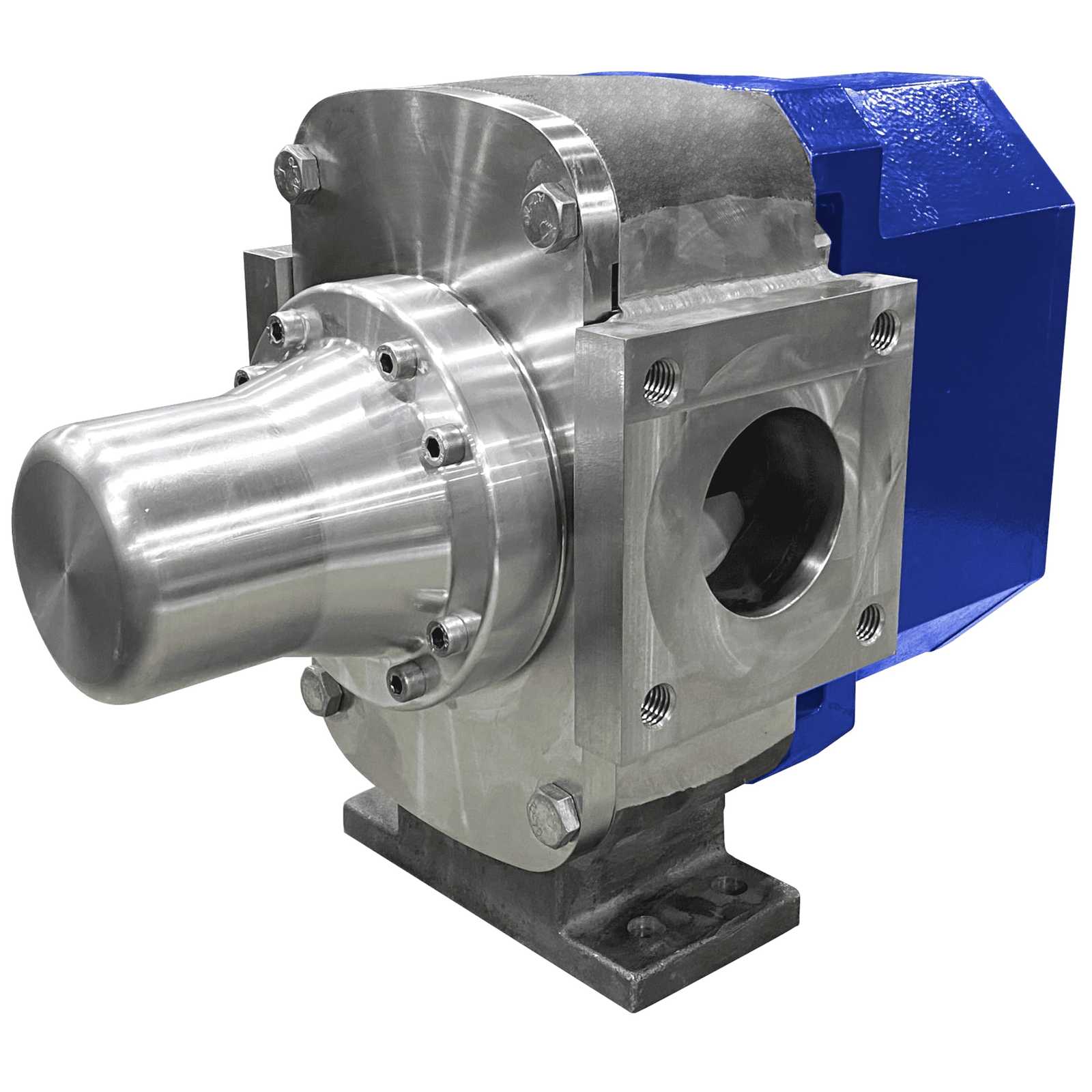

  • L160 Lobe Pump Advantages
    • Product Pump Delivery: Up to 198 GPM @ 145 PSI
    • Dry Run Capable
    • Maintenance Free Gearbox
    • 316L Stainless Steel
    • Composite Viton O-Ring Seal
